6AV6641-0BA11-0AX1 Membrane keypad keyboard

6AV6641-0BA11-0AX1 Membrane keypad keyboard

6AV6641-0BA11-0AX1 Membrane keypad keyboard
6AV6641-0BA11-0AX1 Membrane keypad keyboard6AV6641-0BA11-0AX1 Membrane keypad keyboard6AV6641-0BA11-0AX1 Membrane keypad keyboard6AV6641-0BA11-0AX1 Membrane keypad keyboard6AV6641-0BA11-0AX1 Membrane keypad keyboard
Catalogue de ProduitSimatic OP7 OP77A/B OP 73
MarqueVICPAS
Modèle6AV6 641-0BA11-0AX1
Warranty180 days warranty
ShippingDHL/FedEx/UPS/TNT/EMS
BrandSiemens Simatic OP77A
Model6AV6641-0BA11-0AX1
PartsKeyboard and Shell
Product LineSiemens Operator Panel
PortGuangzhou, Shenzhen, Hongkong
modalité de paiementWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Heure à jour2024/10/30
Info en détails

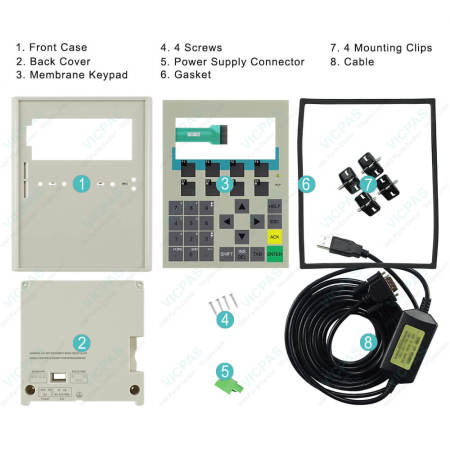

6AV6641-0BA11-0AX1 OP77A Siemens Operator Panel Keyboard and 6AV6 641-0BA11-0AX1 Plastic Shell Case, Gasket, Power Supply Connector, Screws, Mounting Clips and membrane keypad switch

Order each part separately is available

6AV6641-0BA11-0AX1 OP77A Siemens Operator Panel Keyboard, Mounting Clips, Power Supply Connector, Gasket, Screws and Plastic Shell Case membrane keypad switch Replacement

The 6AV6 641-0BA11-0AX1 Membrane keypad keyboard, Screws, Power Supply Connector, Gasket, Mounting Clips and front shell back cover are brand news and support 180 days VICPAS warranties. This Compact Operator Panel for operator control and monitoring of machines and plants, Graphics in a new dimension – small and smart and Pixel-graphics 4.5" LC display, monochrome. With 23 system keys, 8 freely-configurable and freely-inscribable function keys (4 with LEDs)


The Features of Siemens op77a 6AV6641-0BA11-0AX1 operator panel:
High-contrast display for good readability
Large keys for high operational safety with Simple handling and configuring
Integral component of Totally Integrated Automation (TIA):
Increases productivity, minimizes the engineering outlay, reduces the lifecycle costs
Reduction in service and startup costs thanks to maintenance-free design (no battery) and long service life of the backlighting
Can be used worldwide:
32 languages can be configured (including Asiatic and Cyrillic character sets)
Up to 5 languages are selectable online and Language-dependent texts and graphics
Graphics library is available complete with ready-to-use display objects




Specifications:

The table below describes the parameters of the Siemens Simatic OP77A 6AV6641-0BA11-0AX1 Operator Panel  keypad and case.

Part Number : 6AV6 641-0BA11-0AX1
Product Line: Siemens Simatic OP77a
Product's Size: 4.5 inches
Warranty: 180 Days Warranty
Material: Polyester or Polycarbonate
Rated Voltage: DC 5V 1mA
Operating Temp.: -10℃~+80℃
Storage Temp.: -20℃~+70℃
Conductive Trace: Silver or Copper
Life Cycle: 5 Million Cycles(up to)

Related Siemens Simatic OP77 Part No. :

Siemens OP77a OP77b HMI Description Inventory status
6AV6641-0CA01-0AX0 SIMATIC OPERATOR PANEL OP77B Keypad and Case Shell In Stock
6AV6641-0CA01-0AX1 OPERATOR PANEL OP77B (2C) Keyboard and Plastic Case Shell In Stock
6AV6641-0BA11-0AX1 SIMATIC OPERATOR PANEL OP77A Keypad and Case Shell Cover In Stock
6AV6641-0BA11-0AX0 Siemens OP77a Membrane Keypad and Front Case Shell Available Now
6AG1641-0CA01-4AX1 SIPLUS HMI OP77B Membrane Keyboard and Case Shell In Stock
6AG1641-0CA01-4AX0 SIPLUS OP77B Siemens Keypad and Case Shell Cover In Stock
6AV6651-1CA01-0AA0 Starter Package OP77A OP 77A Panel Keypad and Case In Stock
6AV6651-1BA01-0AA0 Starter Package OP77A OP 77B Panel Keyboard and Plastic Case Shell Available Now
Simatic OP77 Operator Panel Description Inventory status

Complete view of all series Siemens HMI Parts


Siemens OP77a Manual PDF Download:

  • 6AV6641-0BA11-0AX1 Siemens OP 77A date sheet
  • SIMATIC HMI OP 77B OP77A Operating Instructions
  • Siemens Simaitc OP77A OP77B software WinCC flexible Operating Instructions
  • Siemens HMI Panel OP77A OP77B Manual/Handbuch
  • HMI device OP 73, OP 77A, OP 77B Operating Instructions manual

  • FAQ:

    Question: How do you back transfer the projects of Siemens OP77A 6AV6641-0BA11-0AX1 Simatic Panel?

    Answer:Back transfer of the project: This feature allow to have a copy of the WinCC project from Simatic Panel. In this case, you can open this project from WinCC flexible and modify if you want.
    Then follow the instructions of Siemens technical support: How do you back transfer the projects of an operator panel and what should you watch out for?


    Question: What is the difference between OP77A vs OP77B?

    Answer: The functions of these two products are the same, but his internal configuration is partially different. The Siemens OP77A version has 256 KB memory and the Simatic OP77b version 1MB + optional MMC. The A-version definitely has an RS485 interface. Aad The B version also has USB, RS232 and RS422


    Question: How to Backup and restore a program on Siemens 6AV6641-0BA11-0AX1 OP77A Operator panel?

    Answer: This feature allow to upload only the compiled file. Let's call an image file downloaded to the Panel. Image file executed only on the panel and you can restoreit using Prosave software to the same panel again or another panel with the same MLFB. You will not be able to modify any thing in this file. And also you do not need to buy a licenced software (WinCC flexible), you can backup and restore using Prosave software and it is a free ware and can be downloaded from siemens Website.
    Then follow the instructions of Siemens technical support: Siemens Simatic OP77A OP77B Backup


    Question: What software does Siemens 6AV6641-0BA11-0AX1 OP77A operator panels use?

    Answer: It is SIMATIC WinCC Flexible software, that is an integrated family of tools for configuring theSiemens 6AV6641-0BA11-0AX1 OP77A operator panels operator units. The uniformity of configuration software reduces training, maintenance and updating requirements . More details download the PDF Siemens Software WinCC-flexible 2008


    Question: What is the Siemens Simatic OP77A 6AV6641-0BA11-0AX1 Operator Panel price of membrane keypad and case?

    Answer: Submit a fast quote, send VICPAS an email for best price.
